- Place of Origin: Shandong
- Brand Name: jingpeng
- Model Number: SUS304,SUS316,SUS316L,SUS321,SUS310S,SUS317L stainless steel: SUS304,SUS316,SUS316L,SUS321,SUS310S,SUS317L

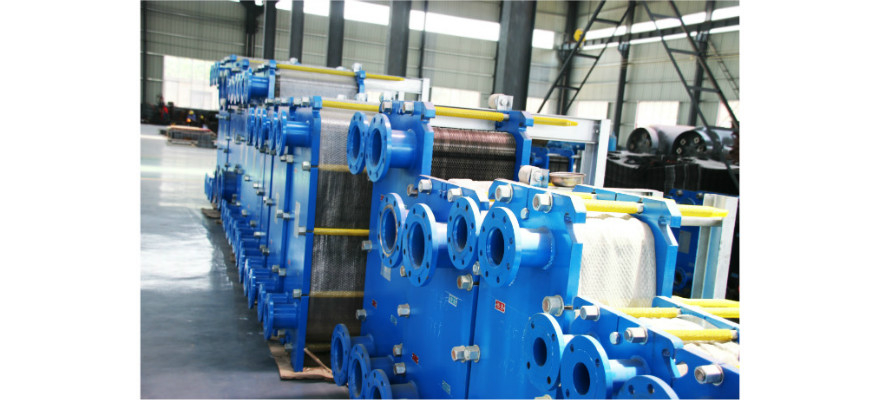

Plate heat exchanger components
Plate heat exchangers are mainly composed of plates, pads and splints.
Plate heat exchanger main application
Refrigeration, HVAC, chemical industry, metallurgical industry, machinery industry, power industry, paper industry, textile industry, food industry, oil process, central heating
Other industrial like petroleum, pharmaceutical, ship, seawater desalination, geothermal utilization, solar energy use.
Due to the special structure of the heat transfer plates, strong turbulence can be generated at lower Reynolds numbers after assembly. This accelerates the destruction of the fluid boundary layer and enhances the heat transfer process; it is not easy to scale. Corrugated crests of adjacent plates support each other to form mesh contacts, which improves the rigidity of the plate and can withstand large pressure difference, thereby ensuring the safety of use.
- Place of Origin: Shandong
- Brand Name: jingpeng
- Model Number: SUS304,SUS316,SUS316L,SUS321,SUS310S,SUS317L stainless steel: SUS304,SUS316,SUS316L,SUS321,SUS310S,SUS317L
Plates material
Material and model | Application |
SUS304、SUS316、SUS316L、SUS321、SUS310S、SUS317L stainless steel: SUS304、SUS316、SUS316L、SUS321、SUS310S、SUS317L | General fluid with low chloride ion content |
TA1 | Seawater and other solutions with high chloride ion content |
Hastelloy alloy | Oxidizing acids, such as sulfuric acid, mixed acids |
Strong acid, such as concentrated sulfuric acid, nitric acid, etc. |
Pads material
Material | Operating temperature | |
Ethylene Propylene Diene Monomer E | -50℃~150℃ | Water, general organic and inorganic acids, bases and chemical media |
-20℃~110℃ | Water, oils, aldehydes and general corrosion media | |
Food, Medical rubber | -20℃~120℃ | Food materials and materials for the pharmaceutical industry |
0℃~180℃ | Organic solution, acid, alkali, alcohol, oil | |
Fluoro butadiene rubber C | -40℃~100℃ | Alkali and some acids |
Silicone rubber | -65℃~230℃ | Some oil alcohol |
